Leírás

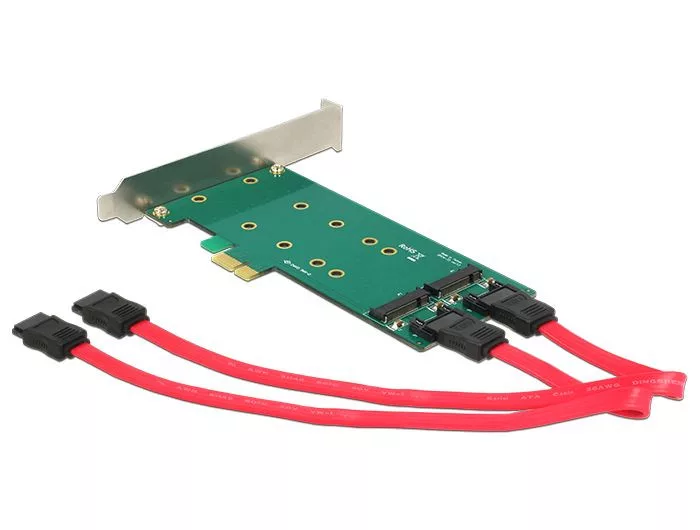

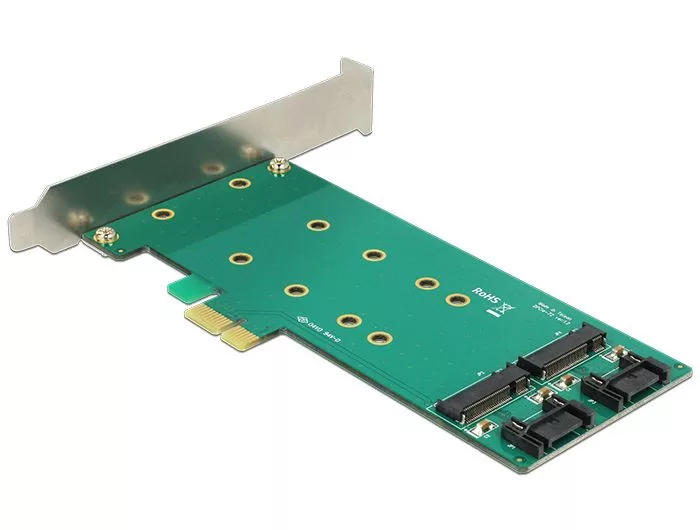

This PCI Express card by Delock expands the PC by two M.2 slots. It can be connect two M.2 SATA modules in format 22110, 2280, 2260, 2242, 2230 in the card and connect via SATA cables to the mainboard.

Műszaki adatok
• Connector:
  internal:
    2 x 67 pin M.2 key B slot
    1 x PCI Express x1
    2 x SATA 6 Gb/s 7 pin female
• Interface: SATA

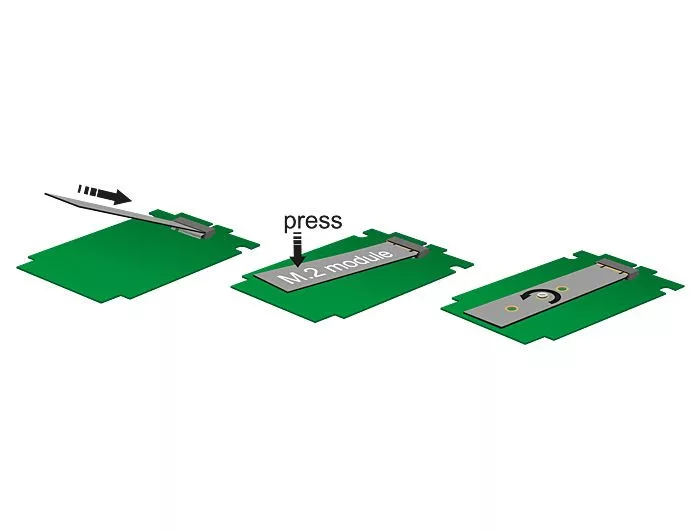

• Supports M.2 modules in format 22110, 2280, 2260, 2242 and 2230 with key B
  or key B+M based on SATA

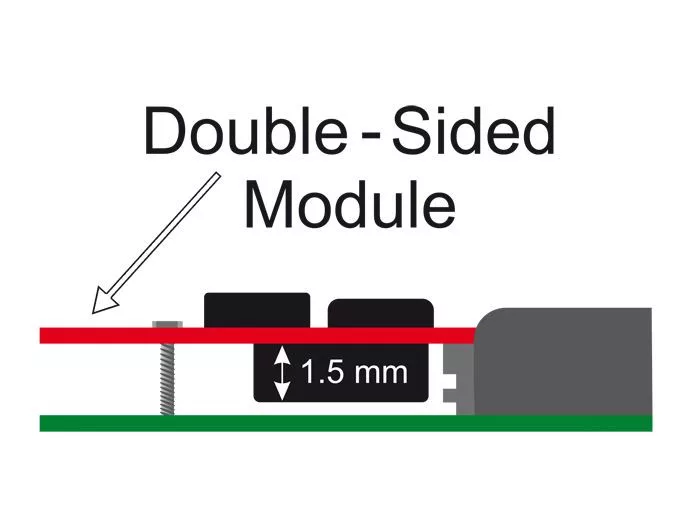

• Maximum height of the components on the module: 1.5 mm
  application of double-sided assembled modules supported
• Data transfer rate up to 6 Gb/s

Rendszerkövetelmények
• Windows 7/7-64/8/8-64/8.1/8.1-64/10/10-64, Linux Kernel 3.19
• PC with one free PCI Express slot
• One free SATA 7 pin interface for each connected M.2 module based on SATA

A csomag tartalma
• PCI Express card

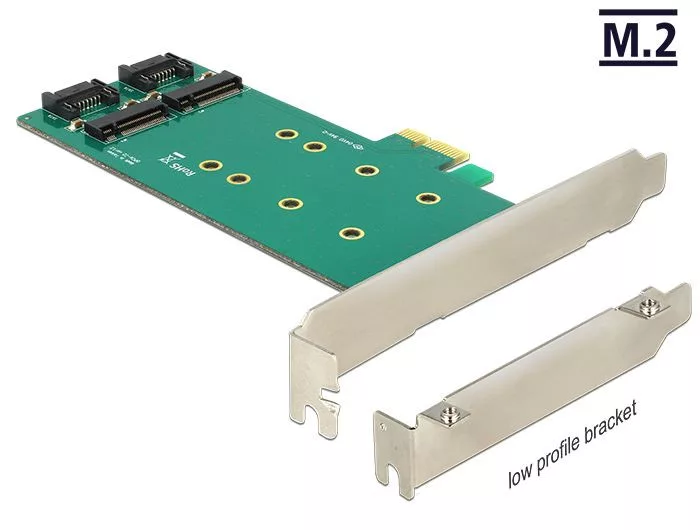

• Low profile bracket
• 2 x fixing screw

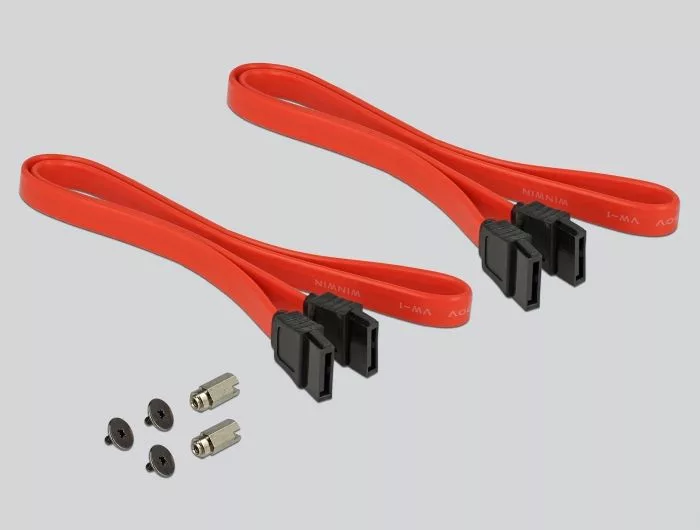

• 2 x SATA cable, length ca. 50 cm
• User manual
